Main

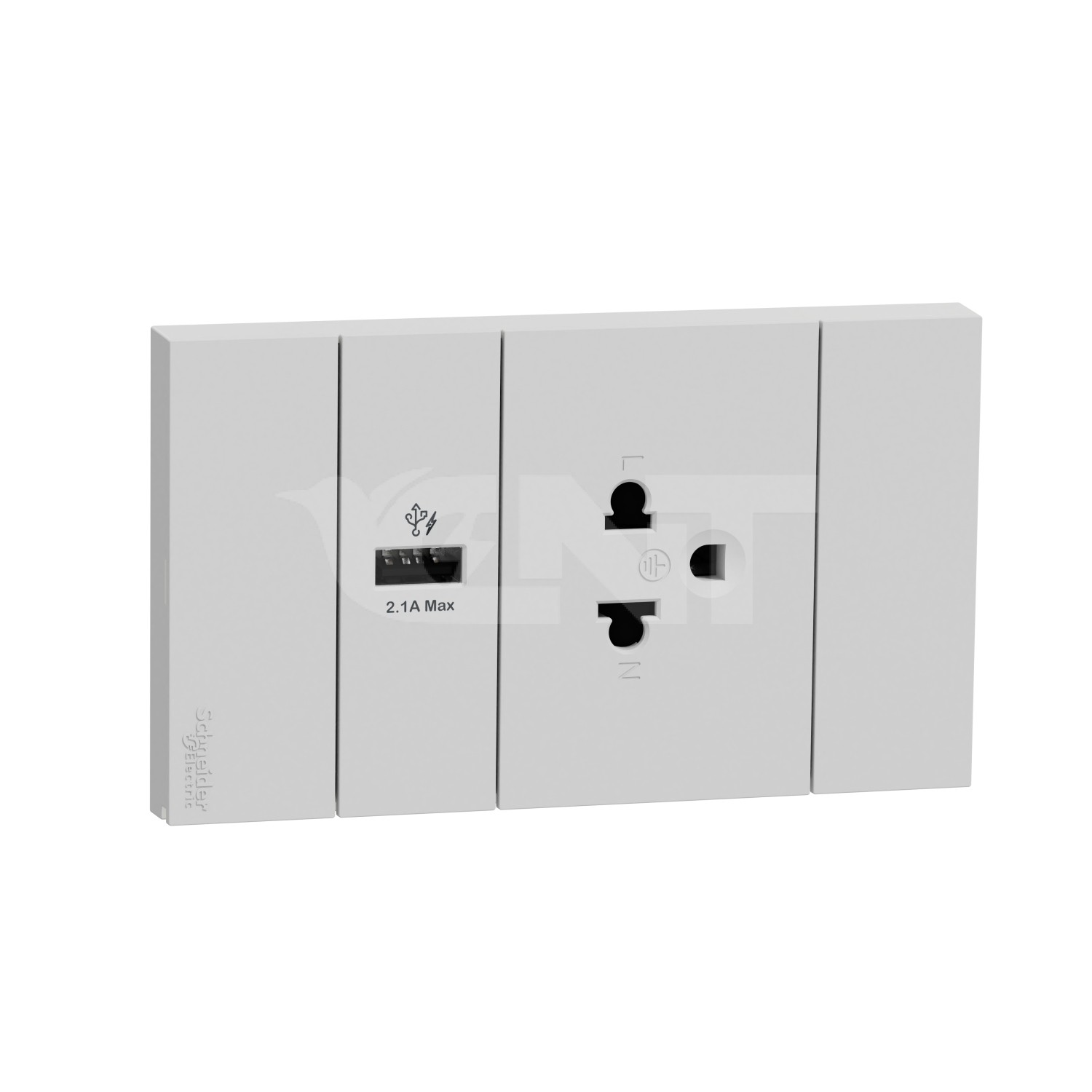

| range of product | AvatarOn A |
|---|---|
| product or component type | USB charger + socket-outlet |
Complementary
| integrated connection type | 1 USB port 5 V AC 2.1 A 50…60 Hz 3 socket-outlet 250 V AC 16 A 50…60 Hz |
|---|---|
| device presentation | Complete product |
| colour tint | Grey |
| ambient air temperature for operation | -5…60 °C |
| relative humidity | 0…95 % |
| service life in cycles | 5000 cycles |
| connections – terminals | 3 pins |
| number of terminals | 3 |
| clamping connection capacity | 0.5…4 mm² for solid cable(s) 2 x 1.5…2 x 4 mm² for stranded cable(s) |
| material | PC |
| wire stripping length | 13 mm |
| height | 70 mm |
| width | 120 mm |
| depth | 36.35 mm |
| embedding depth | 24.85 mm |
| standards | IEC 62368-1 IEC 60884-1 |
Environment
| product certifications | IEC |
|---|---|
| IP degree of protection | IP20 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 155 g |
| Package 1 Height | 3.65 cm |
| Package 1 width | 7 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 1.35 kg |
| Package 2 Height | 8.8 cm |
| Package 2 width | 18.5 cm |
| Package 2 Length | 26.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 48 |
| Package 3 Weight | 8.73 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
