Main

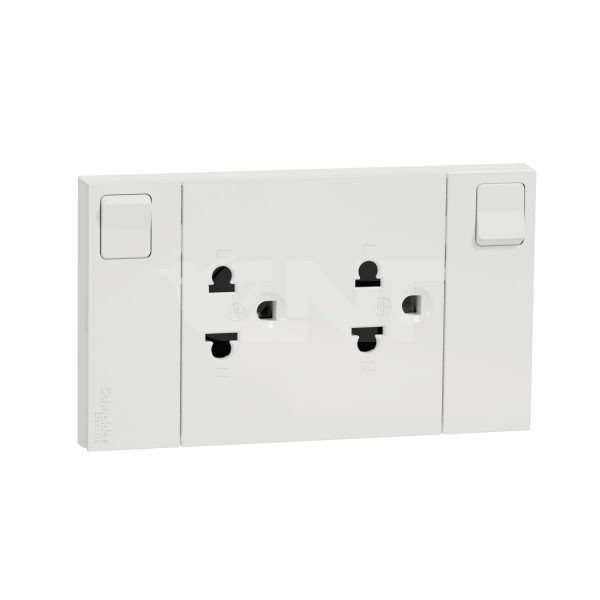

| range of product | AvatarOn A |
|---|---|
| product or component type | Switched socket |
| device application | Power supply |
| device presentation | Complete product |
| colour tint | White |
Complementary
| range compatibility | AvatarOn |
|---|---|
| rated current | 16 A socket-outlet |
| [Ue] rated operational voltage | 250 V AC 50…60 Hz |
| socket number | 2 |
| outlet standard description | 3 pins |
| outlet standard | Universal |
| switch function | 1-way |
| number of gangs | 2 gangs |
| connections – terminals | Push-in |
| number of terminals | 3 |
| clamping connection capacity | 2 x 1.5…2 x 4 mm² for solid cable(s) 2 x 1.5…2 x 4 mm² for stranded cable(s) |
| wire stripping length | 13 mm |
| material | Polycarbonate: cover Polycarbonate: base Polycarbonate: dolly |
| surface finish | Glossy Glossy and matt Glossy |
| device mounting | Flush |
| fixing mode | By 2 screws |
| height | 70 mm |
| width | 120 mm |
| depth | 30.3 mm |
| embedding depth | 19.3 mm |
| net weight | 0.118 kg |
Environment
| IP degree of protection | IP20 |
|---|---|
| ambient air temperature for operation | -5…45 °C |
| ambient air temperature for storage | -5…60 °C |
| relative humidity | 0…95 % |
| standards | IEC 60884-2-3 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 118 g |
| Package 1 Height | 3.6 cm |
| Package 1 width | 7 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 1.516 kg |
| Package 2 Height | 8.8 cm |
| Package 2 width | 18.5 cm |
| Package 2 Length | 26.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Weight | 9.746 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
