Main

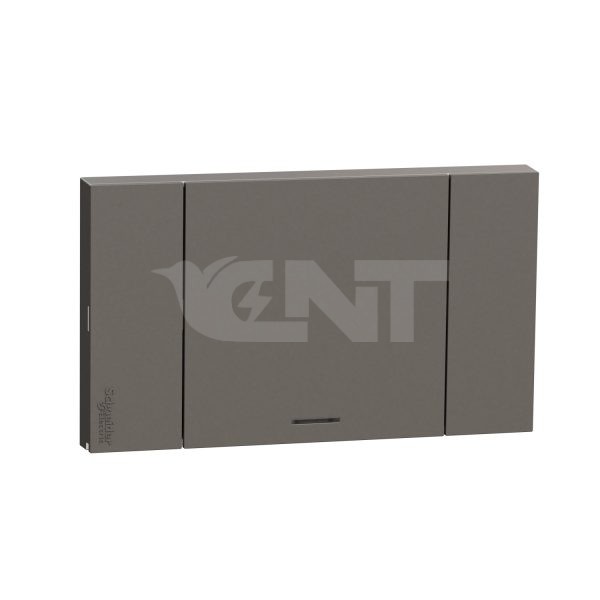

| range of product | AvatarOn A |
|---|---|
| product or component type | Switch |
| load type | Resistive load Inductive Fluorescent load |
| colour tint | Black (BK) |
Complementary
| device presentation | Complete product |
|---|---|
| rated current | 16 AX at 250 V AC 50 Hz |
| switch function | 1-way |
| switch application | Control switch |
| number of gangs | 1 gang |
| clamping connection capacity | 2 x 1.5 mm² for solid cable(s) 2 x 2.5 mm² for stranded cable(s) 2 x 4 mm² |
| connections – terminals | Screwless type terminals |
| local signalling | Fluorescent (black) |
| material | PC: dolly PC 10 % GF: base PC 10 % GF: base cover |
| device mounting | Flush |
| width | 120 mm |
| height | 70 mm |
| depth | 33 mm |
| embedding depth | 22 mm |
Environment
| IP degree of protection | IP20 |
|---|---|
| maximum ambient air temperature for operation | 45 °C |
| ambient air temperature for storage | -5…60 °C |
| operating altitude | <= 2000 m |
| relative humidity | 0…95 % |
| standards | IEC 60669-1 |
| product certifications | IEC TIS |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 99 g |
| Package 1 Height | 3.2 cm |
| Package 1 width | 7 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 1.096 kg |
| Package 2 Height | 8.8 cm |
| Package 2 width | 18.5 cm |
| Package 2 Length | 26.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 60 |
| Package 3 Weight | 7.226 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
