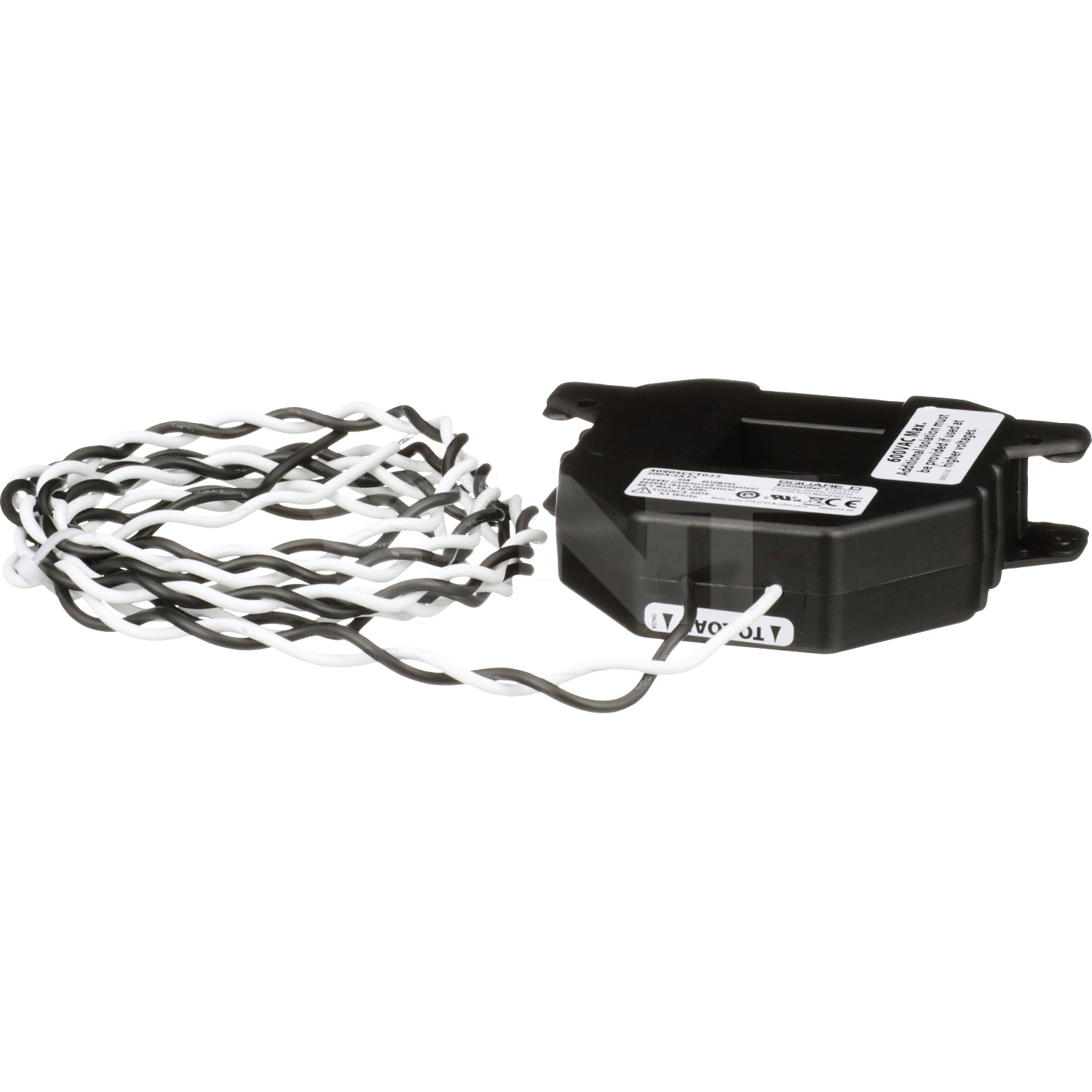

Square D – PowerLogic 3090 SCCT – split core CT – 200/5 A – size 2

Main

range	PowerLogic
product or component type	Current transformer
accessory / separate part category	Measurement accessory

range compatibility	PowerLogic PM3000 power meter PowerLogic PM5000 power meter PowerLogic PM8000 power meter PowerLogic ION7400 power meter CM4000T circuit monitor Acti 9 iEM3000 energy meter
current transformer type	Split core
primary operational current	200 A
secondary current	5 A
network type	AC
network frequency	50/60 Hz
current transformer ratio	200/5
burden	2.5 VA
electrical connection	1.8 m AWG 18 flying leads
insulation	Basic insulation at 600 V AC Reinforced insulation at 300 V AC
measurement accuracy	1 % full scale
mounting location	Indoor use only
width	32 mm internal: 121 mm external:
depth	29 mm
height	38 mm internal: 107 mm external:

relative humidity	0…95 % non-condensing
installation category	III
pollution degree	2
ambient air temperature for operation	-15…60 °C
ambient air temperature for storage	-40…70 °C
operating altitude	<= 3000 m
standards	UL 1015 IEC 61010-1 UL 61010-1
