Main
| range of product | AvatarOn A |
|---|---|

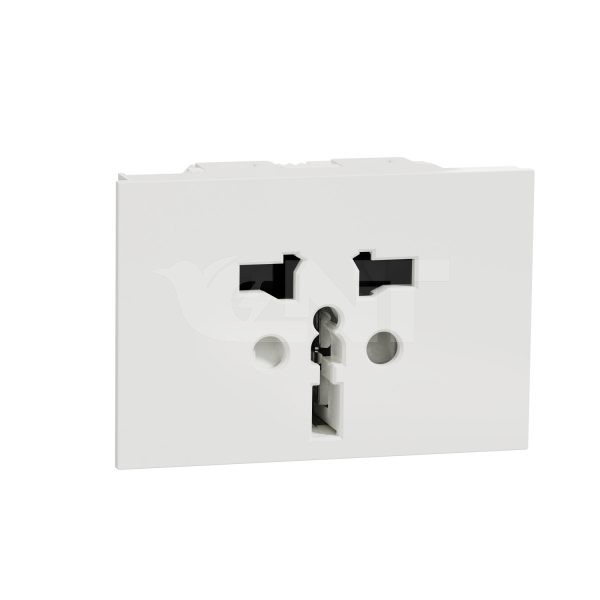

| product or component type | Socket-outlet |
| device presentation | Complete product |
| colour tint | White |
Complementary
| rated current | 16 A at 250 V AC 50…60 Hz |
|---|---|
| socket number | 1 |
| clamping connection capacity | 2 x 1.5…2 x 4 mm² for solid cable(s) 2 x 1.5…2 x 4 mm² for stranded cable(s) |
| connections – terminals | Screw terminal |
| material | Polycarbonate cover Polycarbonate base |
| device mounting | Flush |
| width | 46.6 mm |
| height | 69.3 mm |
| depth | 33.85 mm |
| embedding depth | 23.05 mm |
Environment
| IP degree of protection | IP20 |
|---|---|
| maximum ambient air temperature for operation | 35 °C |
| ambient air temperature for storage | -5…45 °C |
| relative humidity | 0…95 % |
| operating altitude | < 2000 m |
| standards | IEC 60884-1 |
| product certifications | IEC |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 53 g |
| Package 1 Height | 3.4 cm |
| Package 1 width | 4.7 cm |
| Package 1 Length | 7 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 859 g |
| Package 2 Height | 9.1 cm |
| Package 2 width | 8.9 cm |
| Package 2 Length | 25.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Weight | 7.523 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
