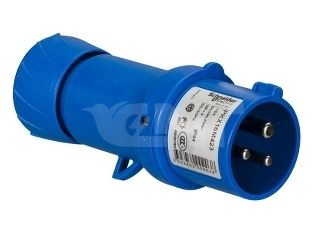

Schneider PratiKa wander plug – straight – 16 A – 2P + E – 200-250 V AC – IP44
| range | PratiKa |
|---|---|
| product or component type | Wander plug |
| device short name | PratiKa plug |
| plug, socket category | Low voltage |
| poles description | 2P + E |
| network type | AC |
| outlet standard | Industrial |
| plug, socket, control station shape | Straight |
|---|---|
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 200…250 V |
| network frequency | 50/60 Hz |
| ground lug clockwise position | 6 h |
| plug, socket material | Housing: self-extinguishing engineering polymer |
| contacts material | Sleeves: brass |
| connections – terminals | Fast connection |
| cable cross section | 1…2.5 mm² |
| cable outer diameter | 8…15 mm |
| cable entry | Fair lead Cable gland |
| thread type | Pg 16 |
| net weight | 0.15 kg |
| height | 129 mm |
| width | 59 mm |
| depth | 59 mm |
| colour | Grey (RAL 7035) |
| voltage colour | Blue |
| standards | IEC 60309-1 IEC 60309-2 |
|---|---|
| IP degree of protection | IP44 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to EN 62262 |
| fire resistance | 850 °C conforming to IEC 60695-2-11 |
| relative humidity | 50 % at 40 °C 70 % at 30 °C 90 % at 20 °C |
| operating altitude | 2000 m |
| ambient air temperature for operation | 35 °C ( 86400 s ) -25…40 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 132.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 5.4 cm |
| Package 1 Length | 13.5 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 1.46 kg |
| Package 2 Height | 10.2 cm |
| Package 2 width | 26 cm |
| Package 2 Length | 27 cm |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 320 |
| Package 3 Weight | 63.192 kg |
| Package 3 Height | 50 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 120 cm |
| Warranty | 18 months |
|---|
