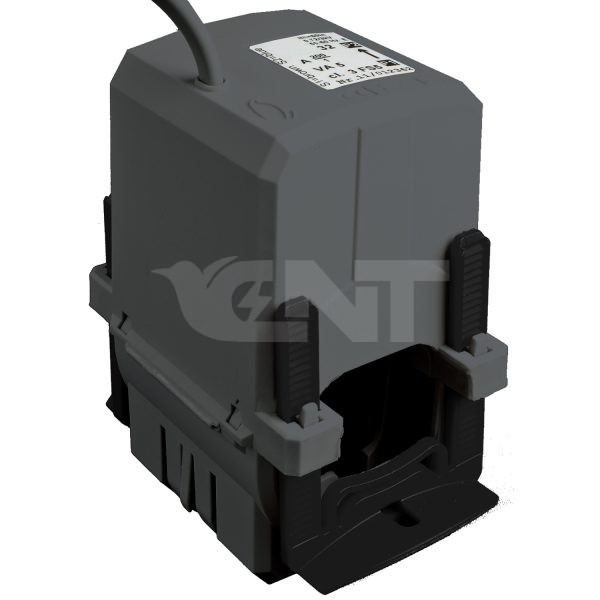

PowerLogic Split Core Current Transformer – Type HG, for cable – 0100A / 5A
เอกสาร
Main
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 3 at 1.5 VA |
| [In] rated current | 100 A |
Complementary
| current transformer type | Standard for cable Split core |
|---|---|
| current transformer ratio | 100/5 |
| [Ith] conventional free air thermal current | 120 A |
| maximum safety factor | 5 |
| permissible current | 6000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | Clip-on |
| width | 59.2 mm outside: |
| height | 96.4 mm outside: |
| depth | 89.2 mm |
| diameter | 32.5 mm inner: |
| electrical insulation class | Class E |
| cable outer diameter | 32.5 mm |
| connections – terminals | Cable 2 cable(s) 0.5…1.5 mm² 0.5 m |
Environment
| standards | DIN EN 60044-1 DIN EN 61869-1 DIN EN 61869-2 VDE 0414 |
|---|---|
| ambient air temperature for operation | -5…50 °C |
| ambient air temperature for storage | -25…70 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 322.0 g |
| Package 1 Height | 8 cm |
| Package 1 width | 7.5 cm |
| Package 1 Length | 13 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 20 |
| Package 2 Weight | 7.05 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
