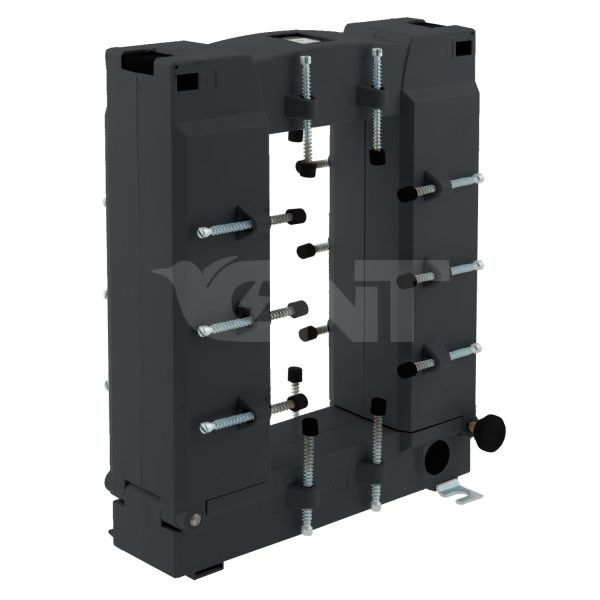

PowerLogic Split Core Current Transformer – Type GJ, for bar – 4000A / 5A


Main

range PowerLogic
product name CT
product or component type Current transformer
secondary current 5 A
accuracy class Class 0.5 at 15 VA
[In] rated current 4000 A

Complementary

current transformer type Standard for busbar
Split core
current transformer ratio 4000/5
[Ith] conventional free air thermal current 4000 A
maximum safety factor 10
permissible current 240000 A during 1 s
[Ue] rated operational voltage < 720 V 50 Hz
[Ui] rated insulation voltage 3 kV
mounting mode By screws
mounting support DIN rail
Fastened onto a surface with screws
width 195 mm outside:
85 mm inner:
height 243 mm outside:
165 mm inner:
depth 79 mm
electrical insulation class Class E
opening of bars 80 x 160

Environment

standards VDE 0414
DIN 42600-2
DIN EN 61869-1
DIN EN 61869-2
ambient air temperature for operation -5…40 °C
ambient air temperature for storage -25…70 °C

Packing Units

Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 4.25 kg
Package 1 Height 8.5 cm
Package 1 width 20 cm
Package 1 Length 25 cm
Unit Type of Package 2 S03
Number of Units in Package 2 3
Package 2 Weight 13.27 kg
Package 2 Height 30 cm
Package 2 width 30 cm
Package 2 Length 40 cm
