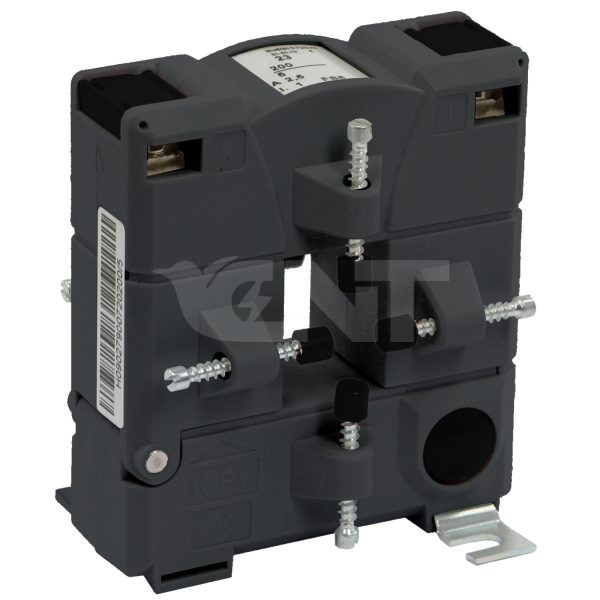

PowerLogic Split Core Current Transformer – Type GA, for bar – 0400A / 5A
เอกสาร
Main
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 0.5 at 1 VA |
| [In] rated current | 400 A |
Complementary
| current transformer type | Standard for busbar Split core |
|---|---|
| current transformer ratio | 400/5 |
| [Ith] conventional free air thermal current | 400 A |
| maximum safety factor | 5 |
| permissible current | 24000 A during 1 s |
| [Ue] rated operational voltage | < 720 V 50 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | By screws |
| mounting support | DIN rail Fastened onto a surface with screws |
| width | 93 mm outside: 23 mm inner: |
| height | 106.15 mm outside: 33 mm inner: |
| depth | 58 mm |
| electrical insulation class | Class E |
| opening of bars | 20 x 30 |
Environment
| standards | VDE 0414 DIN 42600-2 DIN EN 61869-1 DIN EN 61869-2 |
|---|---|
| ambient air temperature for operation | -5…40 °C |
| ambient air temperature for storage | -25…70 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 642.0 g |
| Package 1 Height | 11.3 cm |
| Package 1 width | 6.2 cm |
| Package 1 Length | 9.8 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 24 |
| Package 2 Weight | 15.746 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
