Digital Meters, SCHNEIDER

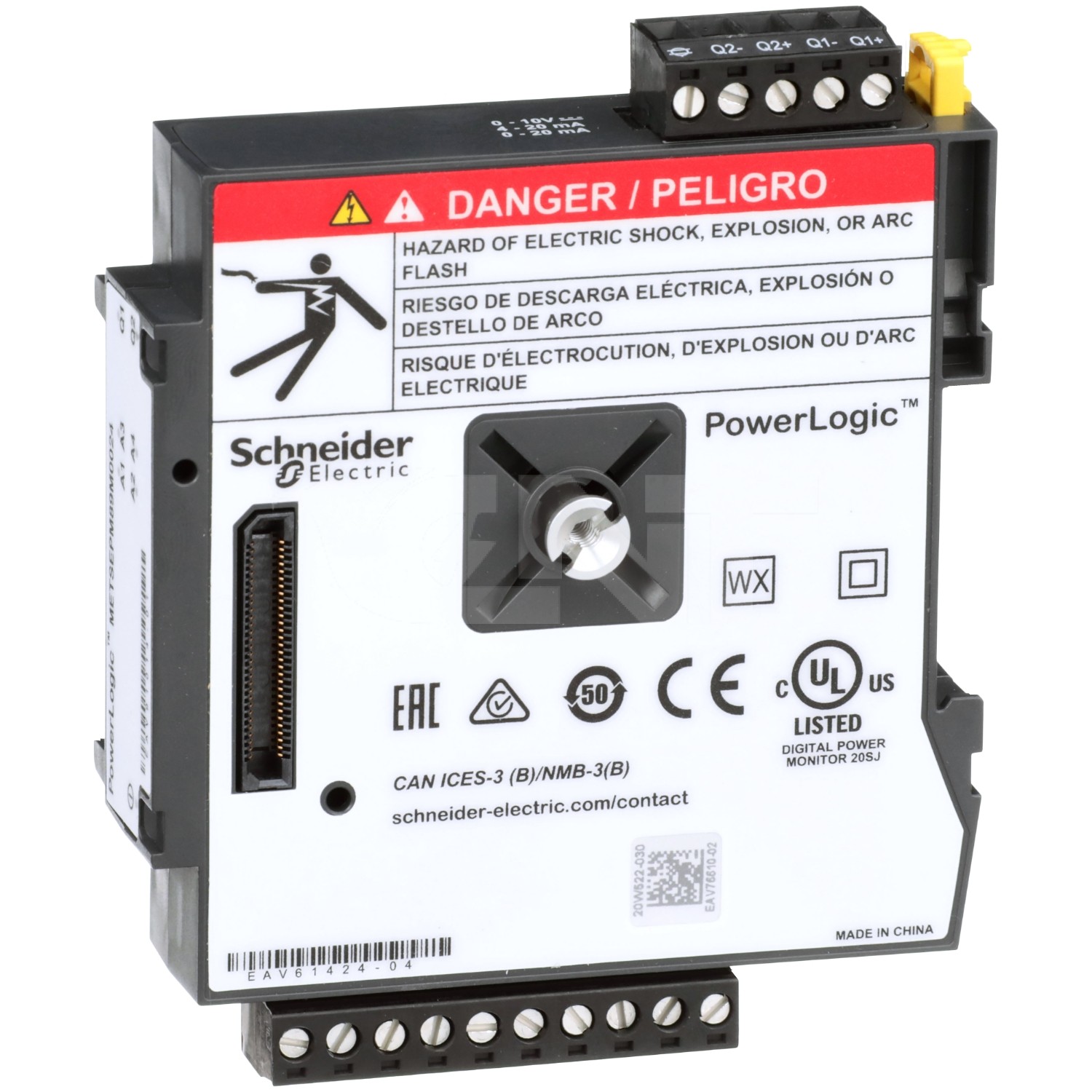

PowerLogic PM8000 – I/O Module – Analogue – 4 inputs + 2 outputs
เอกสาร
ใบข้อมูลผลิตภัณฑ์
User guide
Instruction sheet
Catalogue
เอกสาร CAD
Product Environmental Profile
Main
| range | PowerLogic |
|---|---|
| product or component type | I/O module |
| device application | Optional expansion module |
| range compatibility | PowerLogic PM8000 PowerLogic ION7400 PowerLogic ION9000 |
Complementary
| number of outputs | 2 analog, 0-20 mA or 4-20 mA or 0…10 V |
|---|---|
| number of inputs | 4 analog 0…20 mA/4…20 mA 0…30 V |
| width | 22 mm |
| depth | 90.5 mm |
| height | 90.5 mm |
| net weight | 140 g |
Environment
| ambient air temperature for operation | -25…70 °C |
|---|---|
| ambient air temperature for storage | -40…85 °C |
| IP degree of protection | IP30 conforming to IEC 60529 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 223.0 g |
| Package 1 Height | 6 cm |
| Package 1 width | 10 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 195.0 g |
| Package 2 Height | 6 cm |
| Package 2 width | 10.5 cm |
| Package 2 Length | 10.5 cm |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 15 |
| Package 3 Weight | 3697.0 g |
| Package 3 Height | 15 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
