Main
| range | PowerLogic |
|---|---|

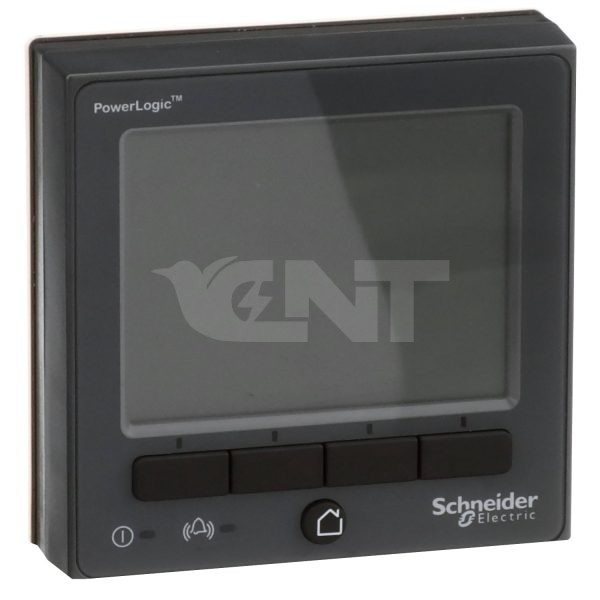

| product or component type | Remote display |
| device application | Human-machine dialogue application |
| range compatibility | PowerLogic PM8000 PowerLogic ION7400 |
| display type | Colour TFT LCD |
Complementary
| display resolution | 320 x 240 pixels QVGA |
|---|---|
| display size | 3.5 inch |
| information displayed | Energy consumption Voltage Power Harmonic distortion Frequency Current System alarm I/O status |
| messages display capacity | Graphic objects (bargraph, button, light…) |
| local signalling | Status: LED (green) Alarm: LED (red) |
| control type | 5 x push-button |
| connector type | RJ45 |
| provided equipment | Mounting hardware Cable (with 3 m |
| mounting mode | Flush-mounted |
| mounting support | Framework remote display |
| width | 96 mm |
| height | 96 mm |
| projecting depth | 27 mm |
| net weight | 300 g |
Environment
| IP degree of protection | IP54 conforming to IEC 60529 |
|---|---|
| relative humidity | 5…95 % |
| operating altitude | 0…3000 m |
| ambient air temperature for operation | -25…60 °C |
| ambient air temperature for storage | -40…85 °C |
| product certifications | IEC |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 510.0 g |
| Package 1 Height | 13.5 cm |
| Package 1 width | 13.5 cm |
| Package 1 Length | 18.5 cm |
