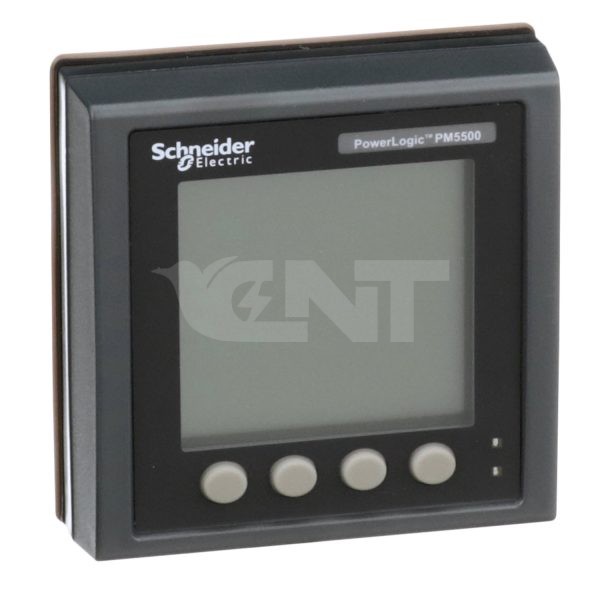

Power Logic PM5000 – 5RD Remote display 96 x 96 mm monochrome
เอกสาร
ใบข้อมูลผลิตภัณฑ์
User guide
Instruction sheet
Catalogue
เอกสาร CAD
Product Environmental Profile
Main
| range | PowerLogic |
|---|---|
| product or component type | Remote display |
| device application | Human-machine dialogue application |
| range compatibility | PowerLogic PM5000 |
| display type | Backlit LCD |
Complementary
| display colour | Monochrome |
|---|---|
| display resolution | 128 x 128 pixels |
| display size | 67 x 62.5 mm |
| information displayed | Power Energy consumption Harmonic distortion Frequency Voltage Current |
| messages display capacity | 6 lines Graphic objects (bargraph, button, light…) |
| local signalling | Communication: LED (green) Programming indication: LED (amber) |
| control type | 4 x push-button |
| connector type | RJ45 |
| mounting mode | Flush-mounted |
| mounting support | Framework remote display |
| width | 96 mm |
| height | 96 mm |
| embedding depth | 21 mm |
| projecting depth | 27 mm |
Environment
| IP degree of protection | IP52 conforming to IEC 60529 |
|---|---|
| relative humidity | 5…95 % at 37 °C |
| operating altitude | 0…3000 m |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 320.0 g |
| Package 1 Height | 7 cm |
| Package 1 width | 10 cm |
| Package 1 Length | 10 cm |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 410.0 g |
| Package 2 Height | 11 cm |
| Package 2 width | 12.5 cm |
| Package 2 Length | 12 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Weight | 3.9 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
