| range | PowerLogic |
|---|---|

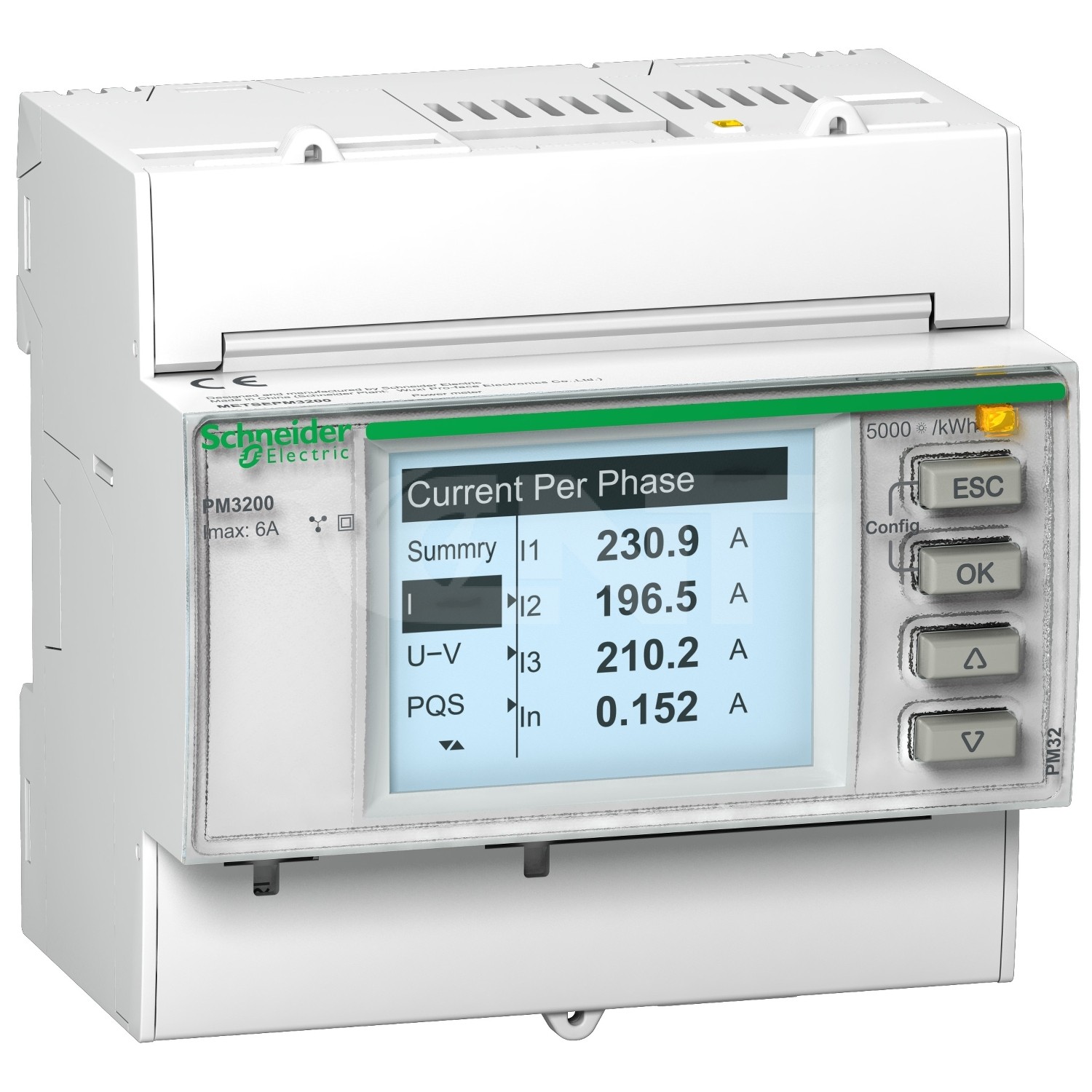

| product name | PowerLogic PM3000 |
| device short name | PM3200 |
| product or component type | Power meter |
Complementary
| power quality analysis | up to the 15th harmonic |
|---|---|
| device application | Multi-tariff Sub billing Power monitoring |
| type of measurement | Active and reactive power Apparent power Current Voltage Energy Power factor Frequency |
| supply voltage | 100…277 V AC 45…65 Hz 173…480 V AC 45…65 Hz 100…300 V DC |
| network frequency | 50 Hz 60 Hz |
| [In] rated current | 5 A 1 A |
| type of network | 3P + N 3P 1P + N |
| power consumption in VA | 5 VA |
| display type | Backlit LCD |
| display resolution | 128 x 96 pixels |
| sampling rate | 32 samples/cycle |
| measurement current | 0.05…6 A 0.02…1.2 A |
| analogue input type | Current 0…5 A Current 0…1 A |
| measurement voltage | 50…330 V AC 45…65 Hz direct 50…330 V AC 45…65 Hz phase to neutral 80…570 V AC 45…65 Hz direct 80…570 V AC 45…65 Hz phase to phase 570…999000 V AC 45…65 Hz with external VT |
| frequency measurement range | 45…65 Hz |
| number of inputs | 0 |
| measurement accuracy | Current 0.3 % 0.5…6 A Current 0.5 % 0.1…1.2 A Voltage 0.3 % 50…330 V Voltage 0.3 % 80…570 V |
| accuracy class | Class 0.5S active energy conforming to IEC 62053-22 Class 1 active energy conforming to IEC 62053-21 Class 2 reactive energy conforming to IEC 62053-23 Class C active energy conforming to EN 50470-3 |
| number of outputs | 0 |
| information displayed | Tariff (4) |
| communication port protocol | – |
| communication port support | – |
| data recording | Min/max of instantaneous values |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| standards | EN 61557-12 EN 61010-1 IEC 61557-12 EN 50470-3 UL 61010-1 EN 50470-1 IEC 62052-11 |
| product certifications | CE conforming to EN 61010-1 CULus conforming to UL 61010-1 UL |
| width | 90 mm |
| depth | 70 mm |
| height | 95 mm |
| net weight | 0.26 kg |
Environment
| electromagnetic compatibility | Electrostatic discharge level 4 conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields level 3 conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 1.2/50 µs shock waves immunity test level 4 conforming to IEC 61000-4-5 Conducted RF disturbances level 3 conforming to IEC 61000-4-6 Magnetic field at power frequency – test level: 0.5 mT conforming to IEC 61000-4-8 Conducted and radiated emissions class B conforming to EN 55022 |
|---|---|
| overvoltage category | III |
| IP degree of protection | IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529 |
| relative humidity | 5…95 % at 50 °C |
| pollution degree | 2 |
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | 0…3000 m |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 384.0 g |
| Package 1 Height | 8.8 cm |
| Package 1 width | 13.2 cm |
| Package 1 Length | 13.7 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 128 |
| Package 2 Weight | 57.672 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 16 |
| Package 3 Weight | 6.567 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
Contractual warranty
| Warranty | 18 months |
|---|
