Main

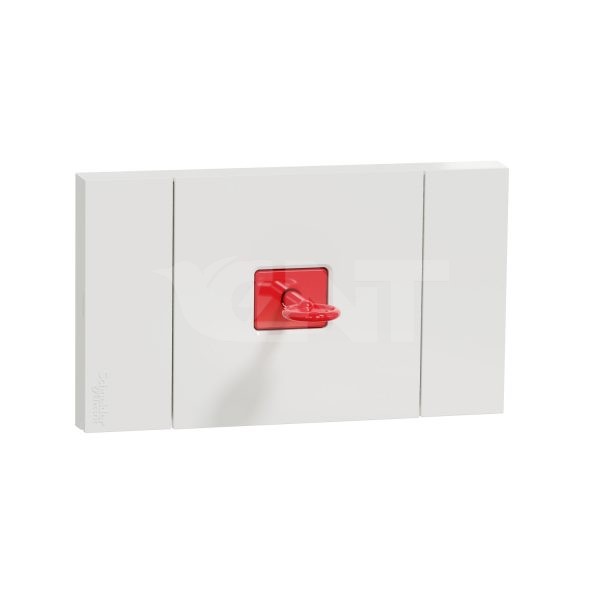

| range of product | AvatarOn A |
|---|---|
| product or component type | Switch |
| load type | Resistive load Inductive Capacitive |
| colour tint | White (WE) |
Complementary
| device presentation | Complete product |
|---|---|
| rated current | 3 A at 24 V DC |
| switch function | 2-way |
| switch application | Panic button |
| number of gangs | 1 gang |
| clamping connection capacity | 2 x 1 mm² for solid cable(s) 2 x 1.5 mm² for stranded cable(s) 1 x 2.5 mm² |
| connections – terminals | Terminal block |
| material | PC: grid plate PC: cover PC: button |
| device mounting | Flush |
| width | 120 mm |
| height | 70 mm |
| depth | 34.2 mm |
| embedding depth | 23.2 mm |
Environment
| IP degree of protection | IP20 |
|---|---|
| maximum ambient air temperature for operation | 45 °C |
| ambient air temperature for storage | -5…60 °C |
| operating altitude | <= 2000 m |
| relative humidity | 0…95 % |
| standards | IEC 60670-1 |
| product certifications | IEC |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 101 g |
| Package 1 Height | 2.6 cm |
| Package 1 width | 7 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 1.267 kg |
| Package 2 Height | 9.1 cm |
| Package 2 width | 8.9 cm |
| Package 2 Length | 25.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 72 |
| Package 3 Weight | 8.25 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
