Main
| range | PowerLogic |
|---|---|

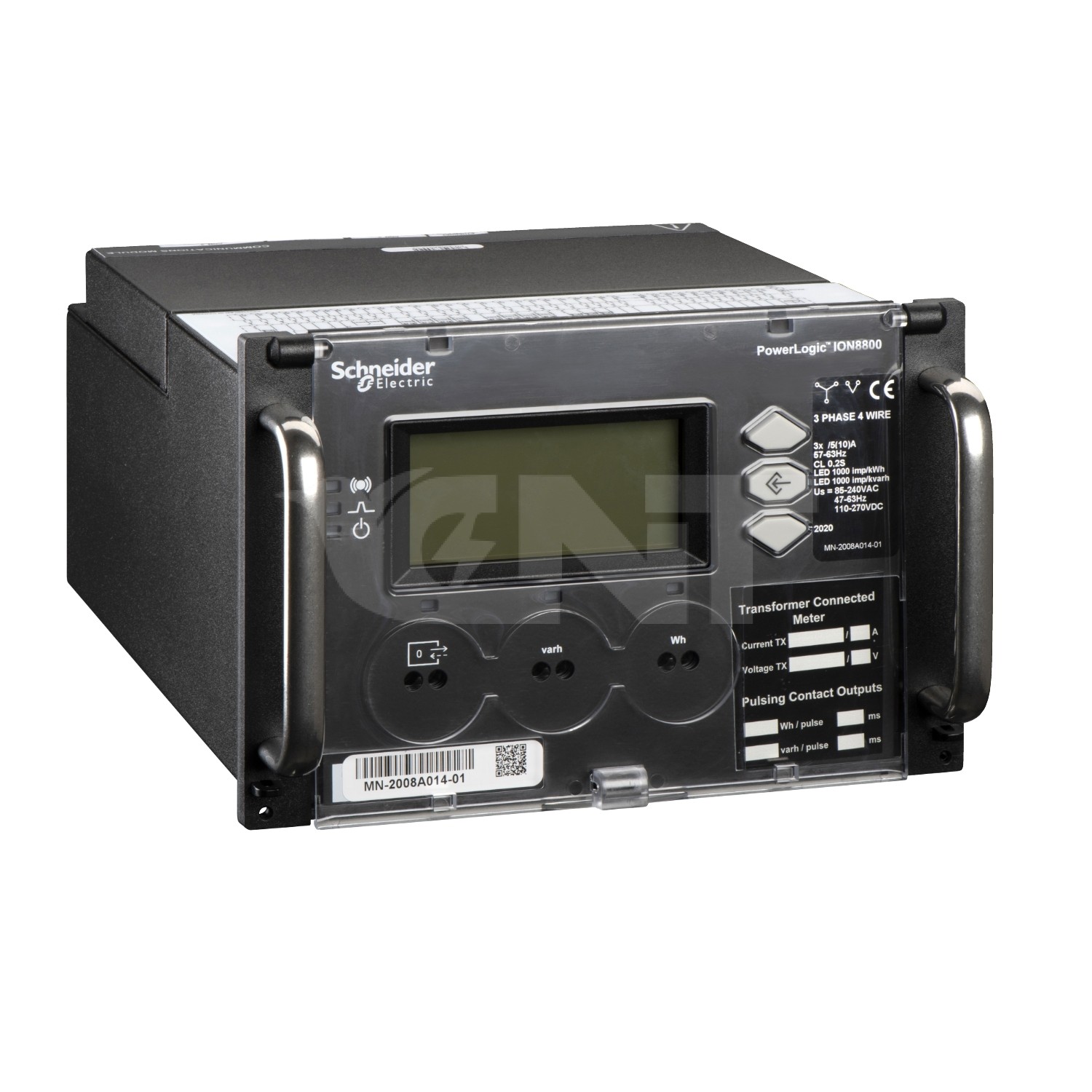

| device short name | ION8800B |
| product or component type | Energy and power quality meter |
Complementary
| power quality analysis | conforming to IEC 61000-4-30: class S power quality measurement conforming to IEC 61000-4-15 flicker magnitude harmonic up to the 50th conforming to IEEE 519: 1992 harmonic control conforming to IEEE 1159: 1995 power quality monitoring symmetrical component transient detection (20 µs) voltage sag and swell detection programmablity (logic and math functions) up to the 63rd harmonic conforming to IEC 61000-4-30: class A power quality measurement conforming to EN 50160 compliance report |
|---|---|
| device application | Tariff metering Demand and power factor control Load curtailment Instrument transformer correction Contract optimisation Energy pulsing and totalisation Equipment monitoring and control Power monitoring Co-generation and IPP monitoring |
| type of measurement | Current Voltage Frequency Apparent power total Power factor total Apparent power per phase Power factor per phase Active power total Active power per phase Reactive power total Reactive power per phase |
| supply voltage | 85…240 V AC 47…63 Hz 110…270 V DC |
| network frequency | 50 Hz |
| [In] rated current | 1 A |
| type of network | 1P + N 3P 3P + N |
| power consumption in VA | 19 VA |
| maximum power consumption in VA | 32 VA |
| display type | FSTN transflective LCD |
| sampling rate | 1024 samples/cycle |
| measurement current | 0…1 A |
| input type | Current 0.001…10 A (impedance 0.01 Ohm) |
| measurement voltage | 57…288 V AC phase to neutral 99…500 V AC phase to phase |
| frequency measurement range | 47…63 Hz |
| number of inputs | 3 digital 80…280 V AC/DC |
| measurement accuracy | Current 0.1 % Voltage 0.1 % Power 0.2 % Power factor 0.1 % Frequency 0.005 Hz Energy 0.2 % |
| accuracy class | Class 0.2S active energy conforming to IEC 62053-22 Class 0.2S reactive energy conforming to IEC 62053-23 |
| number of outputs | 1 alarm output 4 form C solid state output 2 IEC 1107 pulse |
| communication port protocol | DLMS ION TCP/IP at 10/100 Mbit/s DNP3 Modbus RTU, master/slave at <= 19200 bauds Modbus RTU, master/slave at 300…57600 bauds Modbus RTU, master/slave at 300…115200 bauds Modbus TCP, master/slave at 10/100 Mbit/s IEC 1107 at <= 19200 bauds |
| communication port support | Screw terminal block: RS485 RJ45: Ethernet Infrared DB9: RS485/RS232 |
| time synchronisation protocol | IRIG-B |
| data recording | GPS synchronisation Historical logs Waveform logs Alarms Min/max of instantaneous values Data logs Time stamping Transient logs |
| transmission rate | 300…115200 bauds 300…57600 bauds <= 19200 bauds 10/100 Mbit/s |
| memory capacity | 10 MB |
| web services | Web server |
| tamperproof of settings | Protected by access code |
| compatibility code | ION8800B |
Environment
| electromagnetic compatibility | Conducted RF disturbances conforming to IEC 61000-4-6 Immunity to impulse waves conforming to IEC 61000-4-12 Electrical fast transient/burst immunity test conforming to IEC 61000-4-4 Electrostatic discharge conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 Conducted and radiated emissions B conforming to CISPR 22 |
|---|---|
| mounting mode | Rack-mounted |
| enclosure type | 19″ rack |
| type of installation | Indoor installation |
| overvoltage category | III |
| IP degree of protection | IP51 conforming to IEC 60529 |
| relative humidity | 5…95 % |
| pollution degree | 2 |
| ambient air temperature for operation | -10…45 °C |
| ambient air temperature for storage | -25…70 °C |
| operating altitude | 0…2000 m |
| product certifications | EGR ESKOM GOST NMI |
| standards | IEC 62052-11 IEC 60950 |
| width | 202.1 mm |
| depth | 261.51 mm |
| height | 132.2 mm |
| net weight | 6 kg |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 7 kg |
| Package 1 Height | 21 cm |
| Package 1 width | 53 cm |
| Package 1 Length | 44 cm |
Contractual warranty
| Warranty | 18 months |
|---|
