Main
| range | PowerLogic |
|---|---|
| device short name | LVCT |

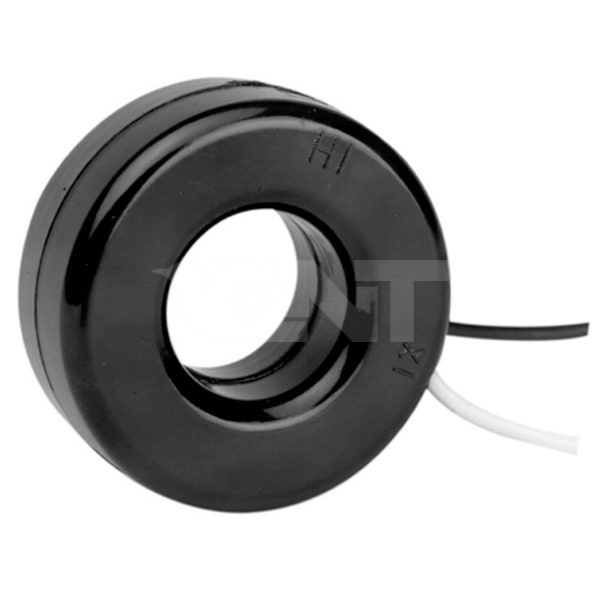

| product or component type | Current transformer |
| output voltage | 0.333 V |
| electrical connection | Cable: 1.8 m600 V |
| product destination | BCPMCS EM4200 EM4900 |
| range compatibility | PowerLogic BCPMSC BCPMSCA multi-circuit energy meter PowerLogic BCPMSC BCPMSCB multi-circuit energy meter PowerLogic BCPMSC BCPMSCE multi-circuit energy meter PowerLogic EM4200 EM4235 energy meter PowerLogic EM4200 EM4236 energy meter PowerLogic EM4900 EM4904 multi-circuit energy meter PowerLogic EM4900 EM4908 multi-circuit energy meter PowerLogic EM4900 EM4914 multi-circuit energy meter PowerLogic EM4900 EM4928 multi-circuit energy meter |
| accessory / separate part category | Measurement accessory |
| current transformer type | A type closed toroid |
| [In] rated current | 400 A |
| network frequency | 50/60 Hz |
Complementary
| measurement accuracy | +/- 0.5 % 5…120 % |
|---|
Environment
| climatic withstand | Relative humidity: 95 % |
|---|---|
| ambient air temperature for operation | -40…85 °C |
| ambient air temperature for storage | -50…105 °C |
| width | 70 mm |
| depth | 25 mm |
| height | 31 mm diameter: 82 mm external: |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 227.27 g |
| Package 1 Height | 10.16 cm |
| Package 1 width | 20.96 cm |
| Package 1 Length | 24.77 cm |
