Main
| range | Acti 9 |
|---|---|
| range of product | Acti 9 iEM3000 |

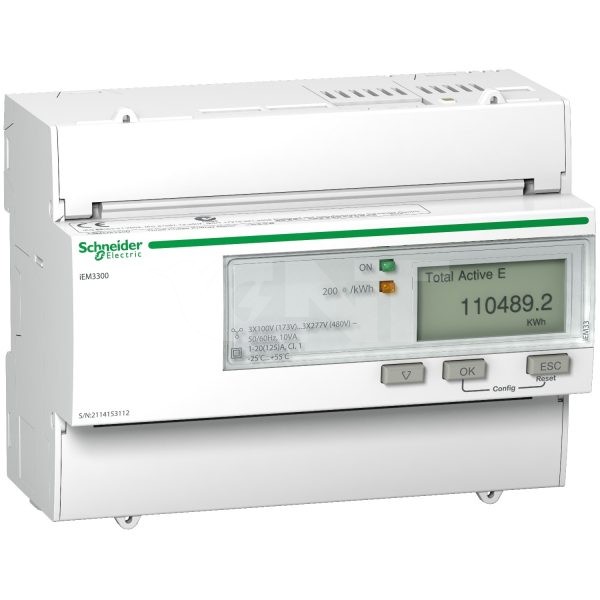

| device short name | IEM3300 |
| product or component type | Energy meter |
Complementary
| poles description | 1P + N 3P + N 3P |
|---|---|
| type of measurement | Active energy |
| device application | Partial meter Sub billing |
| accuracy class | Class 1 active energy conforming to IEC 62053-21 Class 1 active energy conforming to IEC 61557-12 Class B active energy conforming to EN 50470-3 |
| input type | Direct input |
| [In] rated current | 125 A |
| rated voltage | 100…277 V 173…480 V |
| network frequency | 50 Hz 60 Hz |
| technology type | Electronic |
| display type | LCD display |
| sampling rate | 32 samples/cycle |
| measurement current | 0…125 A |
| maximum value measured | 99999999.9 kWh |
| communication port protocol | – |
| communication port support | – |
| local signalling | Green indicator light: power ON Yellow flashing LED: accuracy checking |
| number of inputs | 0 |
| number of outputs | 0 |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| connections – terminals | Screw terminals 50 mm² cable(s) |
| overvoltage category | III |
| standards | IEC 61036 IEC 61010 IEC 62053-21 IEC 61557-12 UL 61010-1 IEC 62053-23 |
| product certifications | CE conforming to IEC 61010 (safety) CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) CULus conforming to UL 61010 (safety) CULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM conforming to NMI M 6-1 (sub-meter) UL |
Environment
| IP degree of protection | IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529 |
|---|---|
| pollution degree | 2 |
| relative humidity | 5…95 % at 50 °C |
| ambient air temperature for operation | -25…60 °C – IEC |
| ambient air temperature for storage | -40…85 °C |
| operating altitude | < 2000 m |
| colour | White |
| 9 mm pitches | 14 |
| width | 126 mm |
| height | 103.2 mm |
| depth | 69.3 mm |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 687.0 g |
| Package 1 Height | 8.5 cm |
| Package 1 width | 11.2 cm |
| Package 1 Length | 13.1 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 144 |
| Package 2 Weight | 111.944 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 18 |
| Package 3 Weight | 12.619 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
