Main
range | Acti 9 |
---|---|
range of product | Acti 9 iEM3000 |

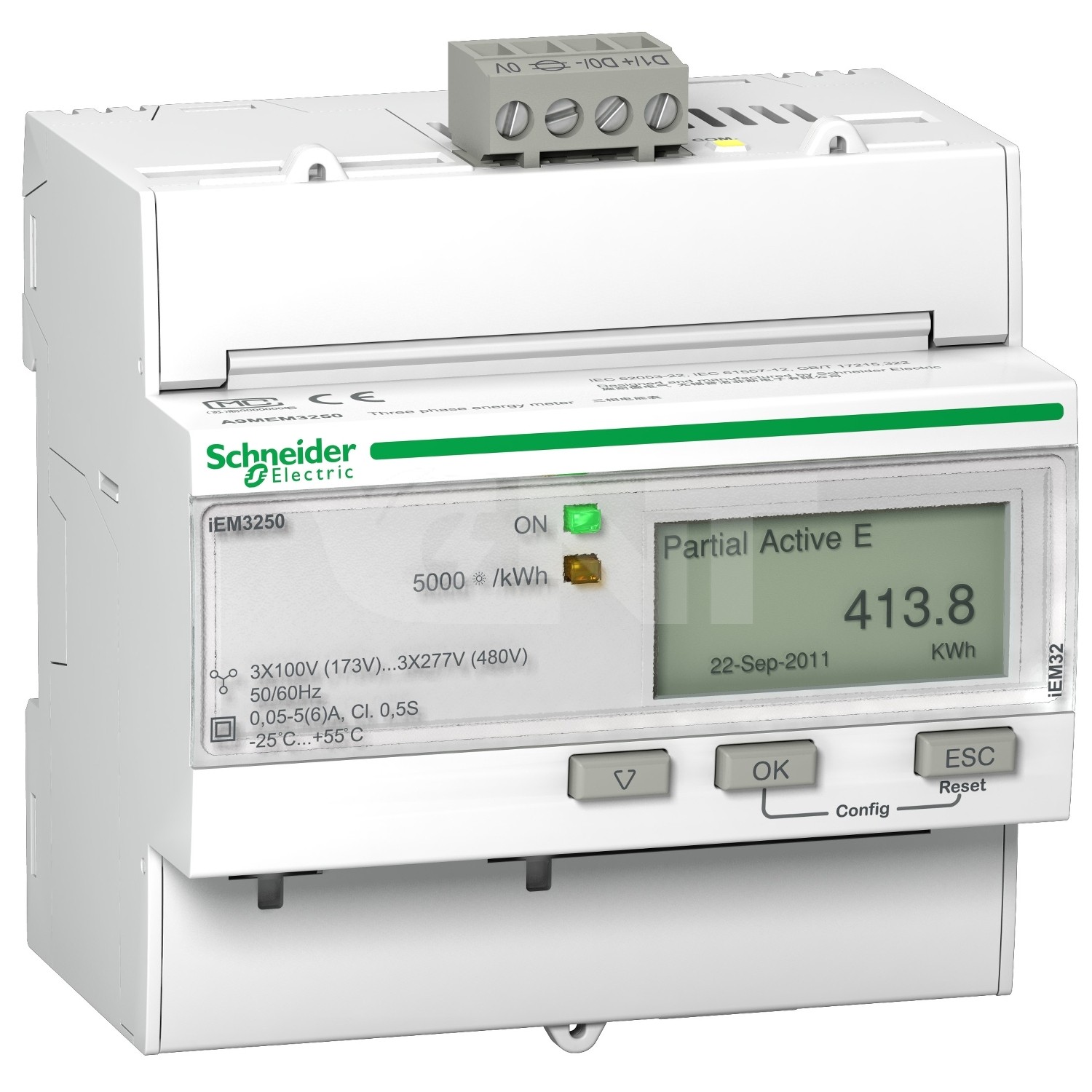

device short name | IEM3250 |
product or component type | Energy meter |
เอกสาร
ใบข้อมูลผลิตภัณฑ์
User guide
Instruction sheet
Catalogue
เอกสาร CAD
Product Environmental Profile
range | Acti 9 |
---|---|
range of product | Acti 9 iEM3000 |
device short name | IEM3250 |
product or component type | Energy meter |
poles description | 3P 3P + N 1P + N |
---|---|
type of measurement | Active energy Current Voltage Active power |
device application | Sub billing Partial meter |
accuracy class | Class 0.5S active energy conforming to IEC 62053-22 Class 0.5S active energy conforming to IEC 61557-12 Class C active energy conforming to EN 50470-3 |
input type | External CT 1 A or 5 A |
[In] rated current | 5 A 1 A |
rated voltage | 100…277 V 173…480 V |
network frequency | 50 Hz 60 Hz |
technology type | Electronic |
display type | LCD display |
sampling rate | 32 samples/cycle |
measurement current | 1…32767000 mA |
maximum value measured | 99999999 MWh |
communication port protocol | Modbus RTU at 9.6, 19.2 and 38.4 kbauds even/odd or none, insulation 4000 V |
communication port support | Screw terminal block: RS485 |
local signalling | Green indicator light: power ON Yellow flashing LED: accuracy checking Yellow indicator light: communications are active on the Modbus port (Modbus) |
number of inputs | 0 |
number of outputs | 0 |
mounting mode | Clip-on |
mounting support | DIN rail |
connections – terminals | Current circuit: screw terminals 6 mm² cable(s) Voltage circuit: screw terminals 2.5 mm² cable(s) |
overvoltage category | III |
standards | IEC 61557-12 IEC 62053-22 IEC 61036 IEC 62053-23 UL 61010-1 IEC 61010 |
product certifications | CE conforming to IEC 61010 (safety) CE conforming to EN 61557-12 (power monitor) CE conforming to IEC 61326-1 (EMC) CULus conforming to UL 61010 (safety) CULus conforming to ANSI C12.20 (sub-meter) EAC (sub-meter) RCM conforming to NMI M 6-1 (sub-meter) UL |
IP degree of protection | IP40 front panel: conforming to IEC 60529 IP20 body: conforming to IEC 60529 |
---|---|
pollution degree | 2 |
relative humidity | 5…95 % at 50 °C |
ambient air temperature for operation | -25…55 °C – IEC |
ambient air temperature for storage | -40…85 °C |
operating altitude | < 2000 m |
colour | White |
9 mm pitches | 10 |
width | 90 mm |
height | 95 mm |
depth | 69 mm |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Weight | 343.0 g |
Package 1 Height | 8 cm |
Package 1 width | 9.5 cm |
Package 1 Length | 10.5 cm |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 30 |
Package 2 Weight | 10.766 kg |
Package 2 Height | 30 cm |
Package 2 width | 30 cm |
Package 2 Length | 40 cm |
Unit Type of Package 3 | P12 |
Number of Units in Package 3 | 720 |
Package 3 Weight | 267.384 kg |
Package 3 Height | 80 cm |
Package 3 width | 120 cm |
Package 3 Length | 110 cm |
Warranty | 18 months |
---|
