Main
range | EasyLogic |
---|---|
device short name | PM2K2DIDO |
product or component type | I/O module |
device application | Optional expansion module |

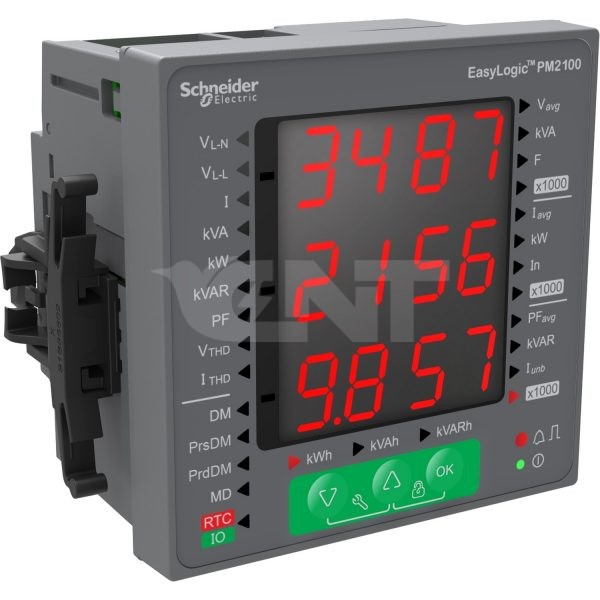

range compatibility | EasyLogic PM2100 PM2130 EasyLogic PM2200 PM2230 |
เอกสาร
ใบข้อมูลผลิตภัณฑ์
User guide
Instruction sheet
Catalogue
เอกสาร CAD
Product Environmental Profile
range | EasyLogic |
---|---|
device short name | PM2K2DIDO |
product or component type | I/O module |
device application | Optional expansion module |
range compatibility | EasyLogic PM2100 PM2130 EasyLogic PM2200 PM2230 |
switching frequency | 2 Hz digital input |
---|---|
[Ui] rated insulation voltage | 2500 V |
number of outputs | 2 configurable, <= 20 mA |
output voltage | 40 V DC |
input impedance | 110 kOhm |
number of inputs | 2 |
output impedance | 50 Ohm |
voltage state 0 guaranteed | 0…4 V DC |
voltage state 1 guaranteed | 18.5…36 V DC |
width | 90.5 mm |
depth | 14.6 mm |
height | 53 mm |
net weight | 50 g |
ambient air temperature for operation | -10…60 °C |
---|---|
ambient air temperature for storage | -25…70 °C |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Weight | 104.0 g |
Package 1 Height | 5 cm |
Package 1 width | 8 cm |
Package 1 Length | 9.5 cm |
Unit Type of Package 2 | S03 |
Number of Units in Package 2 | 60 |
Package 2 Weight | 6.98 kg |
Package 2 Height | 30 cm |
Package 2 width | 30 cm |
Package 2 Length | 40 cm |
