Digital Meters, SCHNEIDER

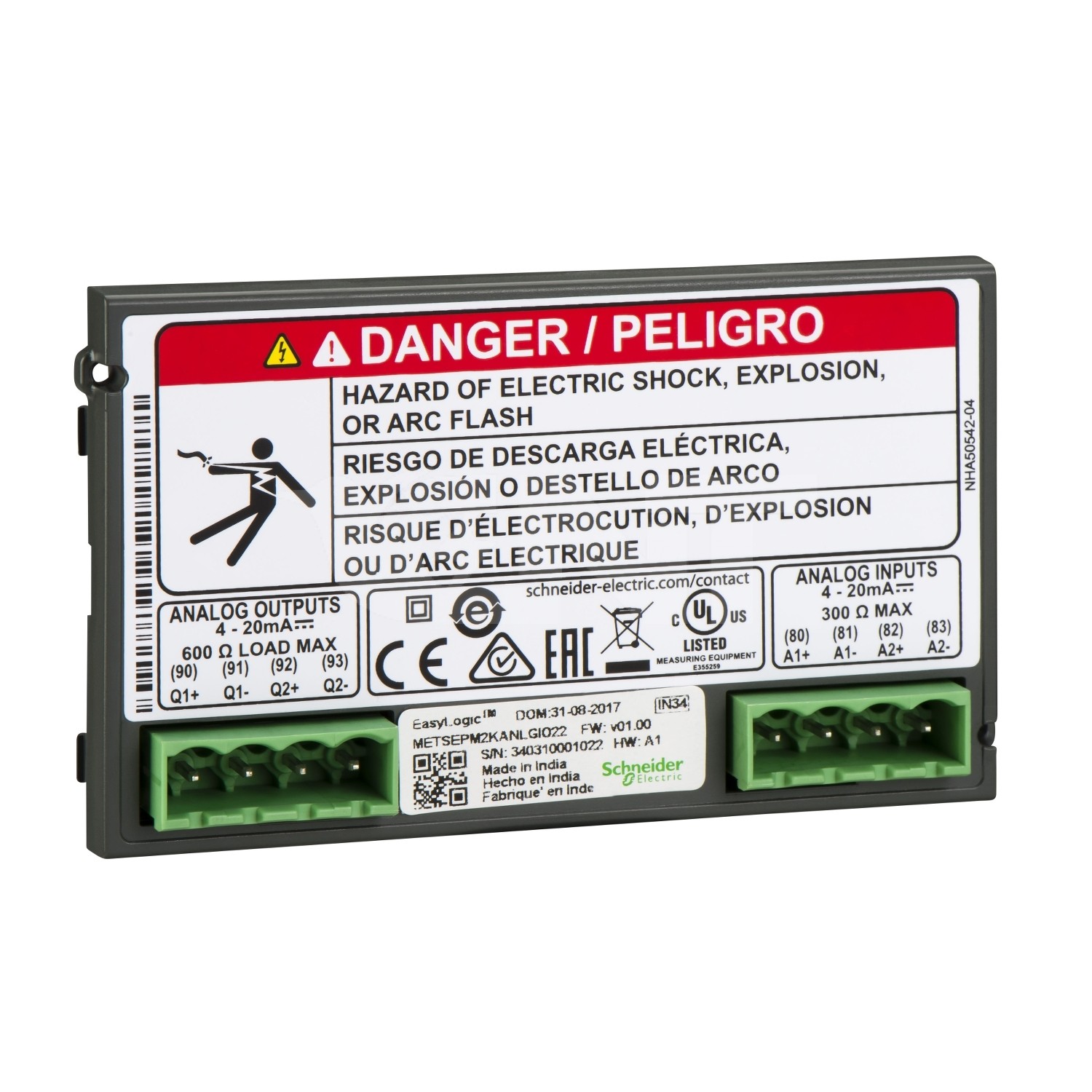

EasyLogic PM2X30 – I/O Module – Analogue – 2 inputs + 2 outputs
เอกสาร
ใบข้อมูลผลิตภัณฑ์
User guide
Instruction sheet
Catalogue
เอกสาร CAD
Product Environmental Profile
Main
| range | EasyLogic |
|---|---|
| device short name | PM2K2AIAO |
| product or component type | I/O module |
| device application | Optional expansion module |
| range compatibility | EasyLogic PM2100 PM2130 EasyLogic PM2200 PM2230 |
Complementary
| [Ui] rated insulation voltage | 2500 V |
|---|---|
| number of outputs | 2 analog, 4…20 mA |
| output voltage | 12 V AC |
| analogue input type | Analog input (impedance <= 300 Ohm) |
| number of inputs | 2 analog 4…20 mA |
| input voltage | 12…30 V AC |
| analogue output type | Analog output, impedance <600 Ohm |
| width | 90.5 mm |
| depth | 14.6 mm |
| height | 53 mm |
| net weight | 50 g |
Environment
| ambient air temperature for operation | -10…60 °C |
|---|---|
| ambient air temperature for storage | -25…70 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 47.3 g |
| Package 1 Height | 5.3 cm |
| Package 1 width | 3.05 cm |
| Package 1 Length | 9.05 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 1 |
| Package 2 Weight | 103.0 g |
| Package 2 Height | 7.8 cm |
| Package 2 width | 4.6 cm |
| Package 2 Length | 9.3 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 12 |
| Package 3 Weight | 600.0 g |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
