Main
| range of product | AvatarOn A |
|---|---|

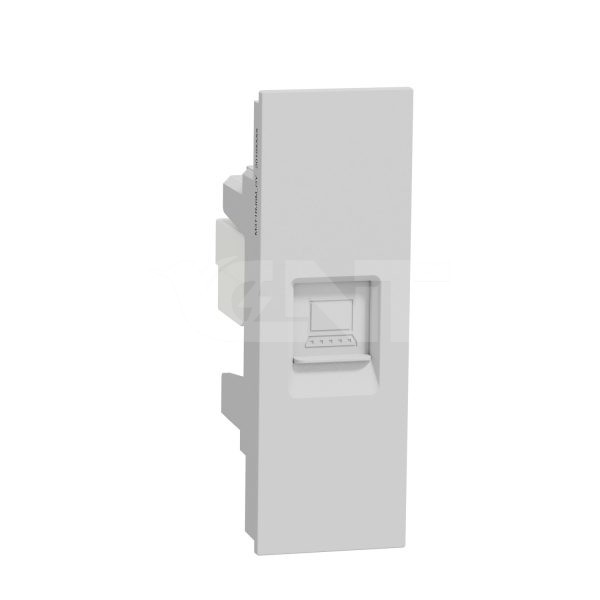

| product or component type | Data socket with shutter |
| socket additional information | Shuttered |
| communication network category | Data: 6 |
| colour tint | Grey |
Complementary
| device presentation | Complete product |
|---|---|
| device mounting | Flush |
| data socket type | RJ45 |
| material | PC: cover Brass: connector |
| IP degree of protection | IP20 |
| width | 69.3 mm |
| height | 23.1 mm |
| depth | 39.1 mm |
Environment
| maximum ambient air temperature for operation | 45 °C |
|---|---|
| relative humidity | 0…95 % |
| standards | IEC 60670-1 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 14 g |
| Package 1 Height | 3.8 cm |
| Package 1 width | 2.3 cm |
| Package 1 Length | 7 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Weight | 355 g |
| Package 2 Height | 9.1 cm |
| Package 2 width | 8.9 cm |
| Package 2 Length | 25.5 cm |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 240 |
| Package 3 Weight | 4.91 kg |
| Package 3 Height | 30 cm |
| Package 3 width | 30 cm |
| Package 3 Length | 40 cm |
