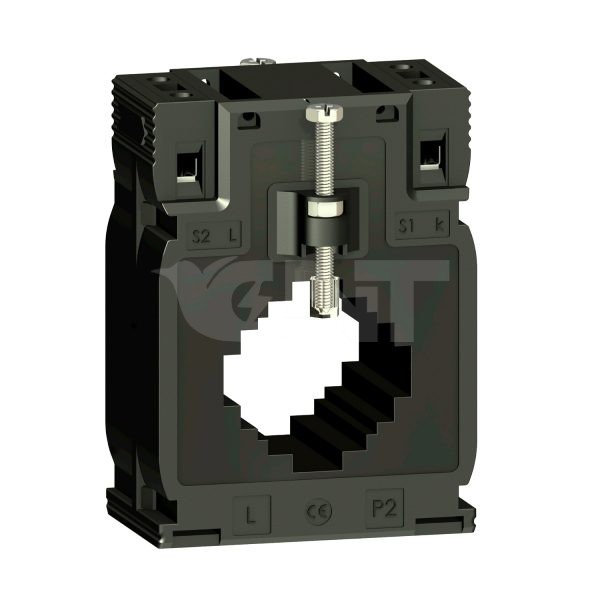

current transformer tropicalised DIN mount 400 5 for bars 10×40 20×32 25×25
เอกสาร
Main
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 0.5 at 8 VA Class 1 at 10 VA |
| [In] rated current | 400 A |
Complementary
| current transformer type | Tropicalised for busbar and cable |
|---|---|
| current transformer ratio | 400/5 |
| [Ith] conventional free air thermal current | 24 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | Insulated locking screw Clip-on By screws |
| mounting support | Busbar DIN rail Mounting plate |
| width | 70 mm outside: 41 mm inner: |
| height | 95 mm outside: 41 mm inner: |
| depth | 45 mm frame: 65 mm total: |
| diameter | 32 mm |
| net weight | 0.404 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| cable outer diameter | 32 mm |
| opening of bars | 25.5 x 25.5 40.5 x 10.5 32.5 x 20.5 |
| sealing | Without |
Environment
| standards | VDE 0414 IEC 61869-2 |
|---|---|
| product certifications | EAC CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…60 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 400.0 g |
| Package 1 Height | 9 cm |
| Package 1 width | 7.3 cm |
| Package 1 Length | 12 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 33 |
| Package 2 Weight | 13.68 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
