Power Factor Correction, SCHNEIDER

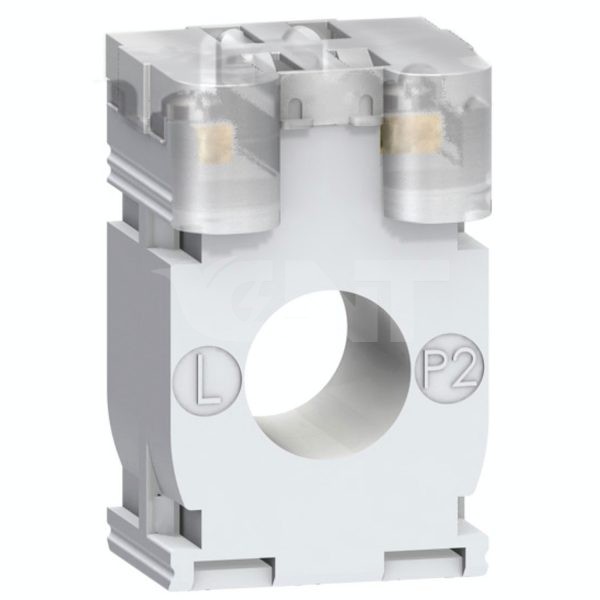

current transformer tropicalised DIN mount 200 5 for cables d. 21
เอกสาร
Main
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 0.5 at 4 VA Class 3 at 6 VA Class 1 at 5.5 VA |
| [In] rated current | 200 A |
Complementary
| current transformer type | Tropicalised for cable |
|---|---|
| current transformer ratio | 200/5 |
| [Ith] conventional free air thermal current | 12 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | Clip-on By screws |
| mounting support | DIN rail Mounting plate |
| width | 44 mm outside: |
| height | 65 mm outside: |
| depth | 30 mm frame: 37 mm total: |
| diameter | 21 mm |
| net weight | 0.175 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| cable outer diameter | 21 mm |
| sealing | With |
Environment
| standards | IEC 61869-2 VDE 0414 |
|---|---|
| product certifications | CE EAC |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…60 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 181.0 g |
| Package 1 Height | 5.5 cm |
| Package 1 width | 5.5 cm |
| Package 1 Length | 8 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 50 |
| Package 2 Weight | 9.25 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
