Main
| range | PowerLogic |
|---|---|
| product name | CT |

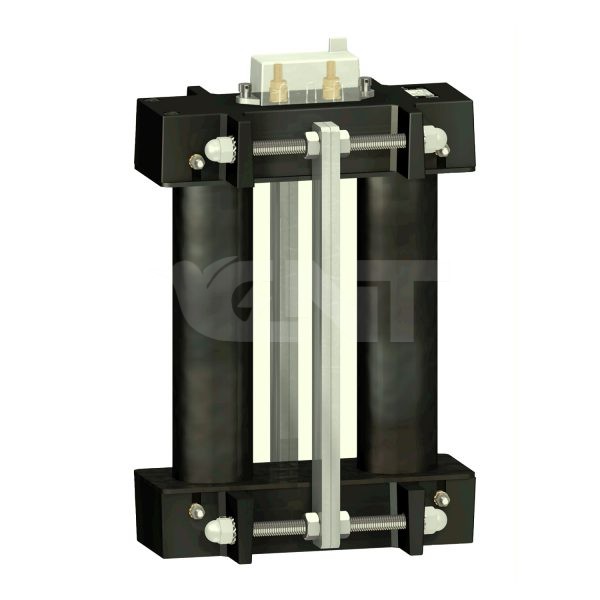

| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 0.5 at 60 VA |
| [In] rated current | 5000 A |
Complementary
| current transformer type | Tropicalised for busbar |
|---|---|
| current transformer ratio | 5000/5 |
| [Ith] conventional free air thermal current | 60 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 10 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | Insulated locking screw |
| mounting support | Busbar |
| width | 175 mm outside: 55 mm inner: |
| height | 242 mm outside: 165 mm inner: |
| depth | 110 mm total: |
| net weight | 3.1 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| opening of bars | 165 x 55 |
| sealing | With |
Environment
| standards | IEC 61869-2 VDE 0414 |
|---|---|
| product certifications | CE EAC |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…50 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 4.077 kg |
| Package 1 Height | 12 cm |
| Package 1 width | 28 cm |
| Package 1 Length | 30 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 2 |
| Package 2 Weight | 8.641 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
