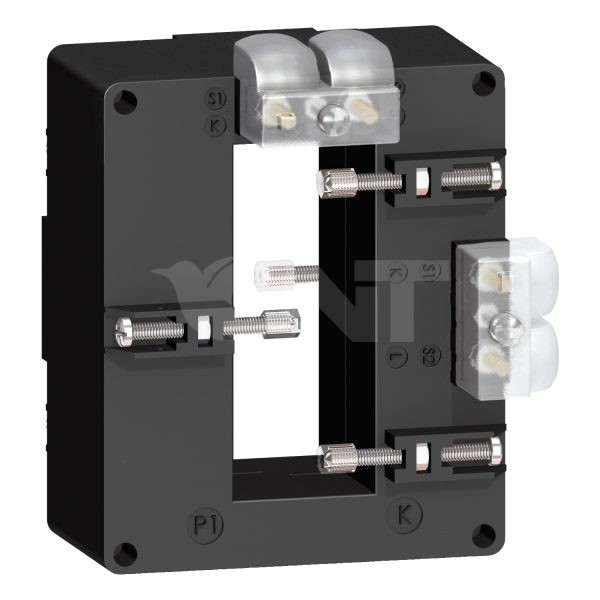

current transformer tropicalised 1250 5 double output for bars 34×84
เอกสาร
Main
| range | PowerLogic |
|---|---|
| product name | CT |
| product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class | Class 0.5 at 12 VA Class 1 at 15 VA |
| [In] rated current | 1250 A |
Complementary
| current transformer type | Tropicalised for busbar |
|---|---|
| current transformer ratio | 1250/5 |
| [Ith] conventional free air thermal current | 60 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| mounting mode | Insulated locking screw |
| mounting support | Busbar |
| width | 96 mm outside: 35 mm inner: |
| height | 116 mm outside: 84 mm inner: |
| depth | 40 mm frame: 78.4 mm total: |
| net weight | 0.626 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| electrical insulation class | Class B |
| opening of bars | 84 x 34 |
| sealing | With |
Environment
| standards | VDE 0414 IEC 61869-2 |
|---|---|
| product certifications | EAC CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| ambient air temperature for operation | -25…50 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 630.0 g |
| Package 1 Height | 10.5 cm |
| Package 1 width | 10 cm |
| Package 1 Length | 13.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 7.819 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
