Main
| range | PowerLogic |
|---|---|

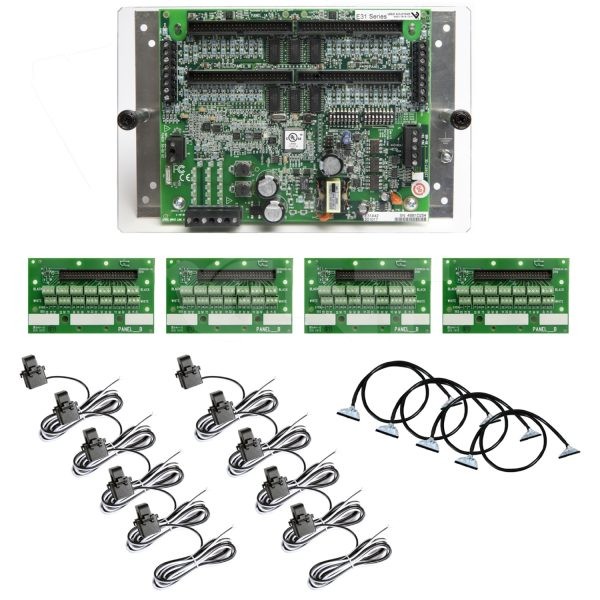

| product name | PowerLogic BCPMSC |
| product or component type | Multi-circuit energy meter |
| device short name | BCPMSCA |
| Model type | Advanced |
| power monitoring | Basic instrumentation |
| energy management | Sub billing and cost allocation |
| device application | Sub billing |
| power quality analysis | voltage sag and swell detection |
| type of measurement | Voltage Current Frequency Active power Power factor Active energy |
| [Us] rated supply voltage | 90…277 V AC 50/60 Hz +/- 1 % |
| network frequency | 50 Hz 60 Hz |
Complementary
| current transformer input | Current 0.333 V42 x Current 1 V |
|---|---|
| update time | 1.8 s |
| measurement voltage | 90…277 V phase to neutral 150…480 V phase to phase |
| measurement accuracy | Branch current 2 % 0.25…2 A Branch current 1 % 2…100 A Mains current 3 % 1…100 % Mains current 3 % 2…100 % Voltage 1 % 90…277 V |
| sampling rate | 256 samples/cycle |
| provided equipment | 2 x adapter board 0 x current transformer |
| communication port protocol | Modbus RTU |
| communication port support | RS485 |
| communication of data | High current alarm High-high current alarm Low current alarm Over voltage alarm Low-low current alarm Under voltage alarm |
Environment
| mounting mode | Clip-on |
|---|---|
| mounting support | Board |
| relative humidity | 95 % |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -40…70 °C |
| operating altitude | 3000 m |
| standards | EN 61010 ANSI C12.1 IEC 61010-1 |
| product certifications | UL 508 |
| width | 288 mm |
| height | 146 mm |
| net weight | 1.5 kg |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.241 kg |
| Package 1 Height | 10.4 cm |
| Package 1 width | 31 cm |
| Package 1 Length | 38.7 cm |
Contractual warranty
| Warranty | 18 months |
|---|
